BiPAP VT 300 ST

Weighing just 1.3kg, VT300 ST BiPAP comes with advanced BiPAP modes to support users with different respiratory conditions like COPD, hypoventilation and restrictive lung disorder. The machine offers range of comfort features to enhance the therapy experience.

Key features of DeckMount VT300 ST BiPAP machine

• Therapy Modes

The machine supports multiple therapy modes including CPAP, S, ST, T, APCV, VAF-ST, and VAF-APCV to cater patient needs.

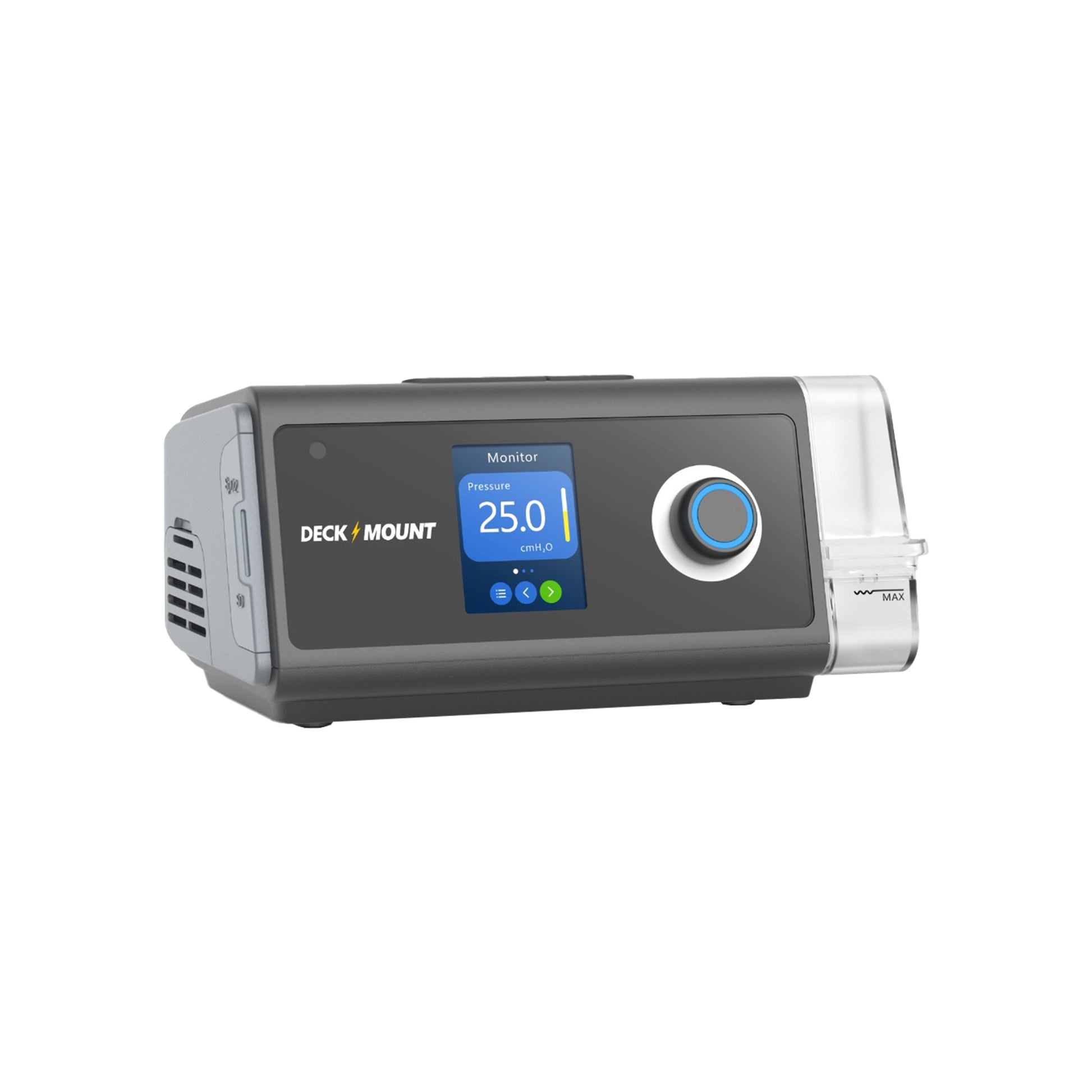

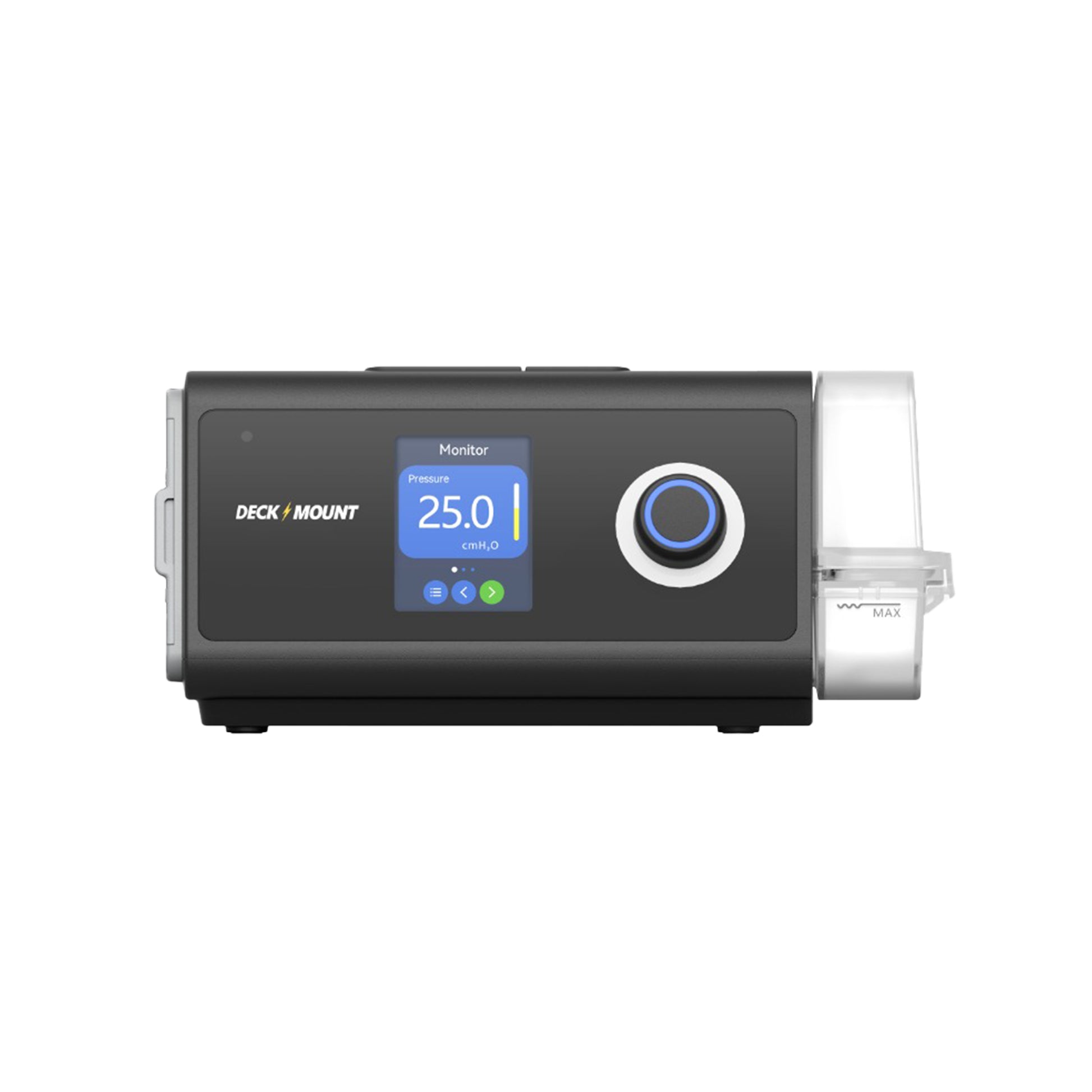

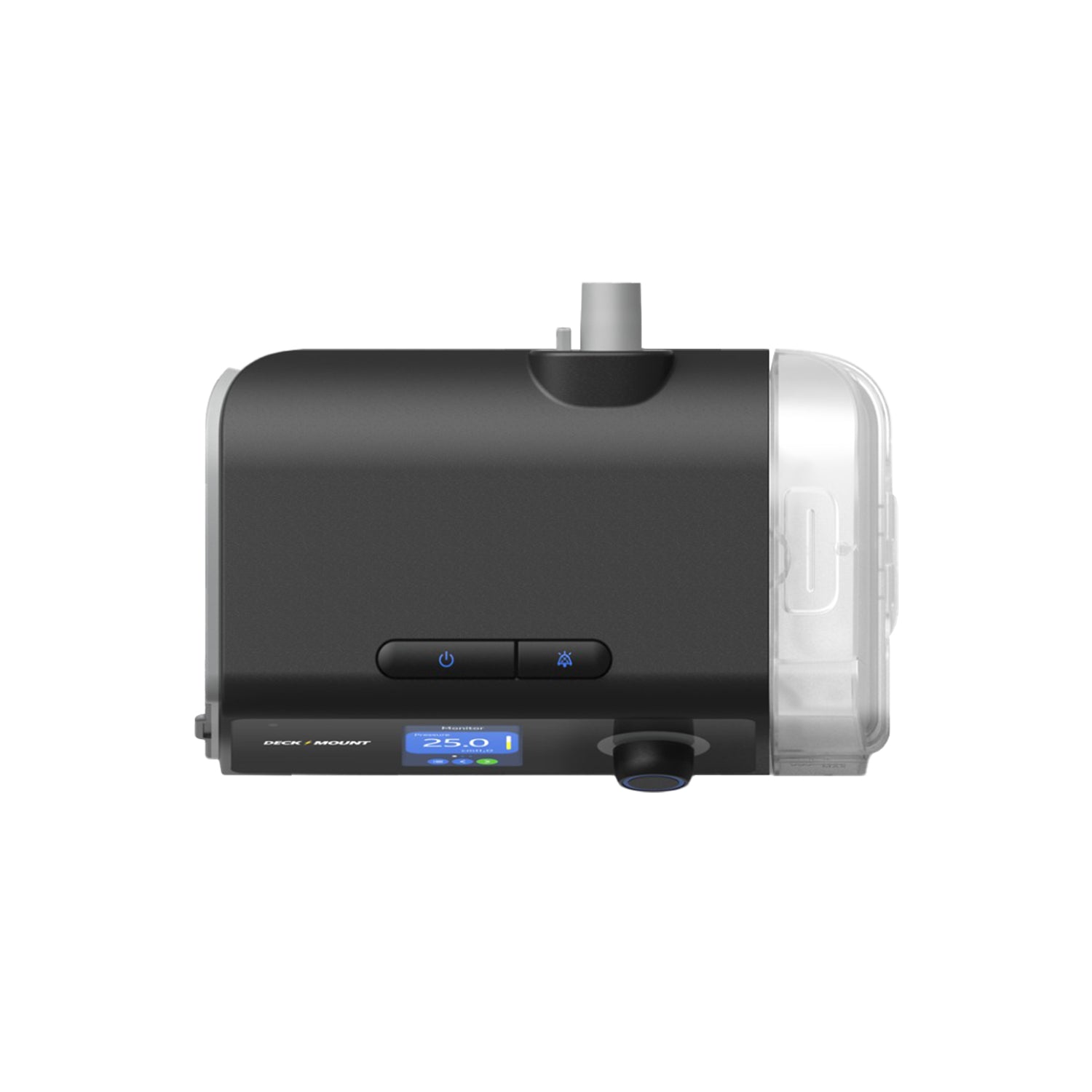

• Ergonomic Design

VT300 ST BiPAP is designed ergonomically with a well strategically placed display for better visibility and ease of use.

• Heated Tube compatibility

The machine is compatible with an optional heated tube that ensures better comfort and prevents from condensation buildup inside the tube.

• Advanced Alarm System

The BiPAP VT300 ST incorporates a robust alarm system that meets national standards. With both audible and visual alerts, it promptly notifies you of potential issues such as power failure, low voltage, obstruction, SD card full, and high leak, ensuring safety throughout therapy.

• Auto On/Off

With Auto On/Off functionality, the device automatically starts when you put on the mask, eliminating the need for manual activation. When you remove the mask, it automatically turns off.

• Supplemental Oxygen Support

The VT300 ST BiPAP supports supplemental oxygen with a maximum flow of 4 L/min in CPAP mode and up to 15 L/min in S, T, ST, APCV, VAF-ST, and VAF-APCV modes

• Warranty

The machine comes with 2 year warranty

SPECIFICATION

Therapy Modes: CPAP, S, T, ST, APCV, VAF-ST, VAF-APCV

Operating Range: CPAP :4-20 cmH2O IPAP: 4-25 cmH2O | EPAP: 4-23 cmH2O VT: 200-2000 ml

Sound Pressure Level: <30 dBA with uncertainty of 2 dBA

Ramp/Rise Time: 0-60 mins/ 1-6 level

Humidification Level: 0-5 level

Alarms: Power failure, Low voltage, Obstruction, SD card full, High Leak

Data Management: 1/7/31 days, 6 months, 1 year of detailed data

Dimensions: 250x181x114 mm/ 1340 g

Power Adapter: Input Range : 100-240V, 50/60 Hz, 1.8 A max (typical power consumption)

Operating Temperature / Humidity / Altitude: +5 oc to +35 oc/ 10-95% relative humidity, non-condensing/sea level to 2,591 m, air pressure range 700 to 1060 hpA

Storage and Transport Temperature / Humidity: -20 oc to +60 oc / 5-95% relative humidity, non-condensing

Supplement Oxygen: Maximum Flow: 4L/min (CPAP), 15 L in S, T, ST, APCV, VAF-ST, VAF-APCV

Standard Air Filter: Cotton Filter

Tubing: Standard (19 mm)/ 22 mm Air Outlet (STD)/ Heating tube (Optional)

Warranty: 2 Years (Repair)

Display: 2.8 in LCD

Sensitivity: I sens - Auto, 1-6 level, E sens - Auto, 1-6 level

Conforms to Standards: IEC 60601-1-1 IEC 60601-1-2 IEC 80601-2-12 CDSCO || Class 2 (double insulated, Type BF, Ingress Protection IP22)
