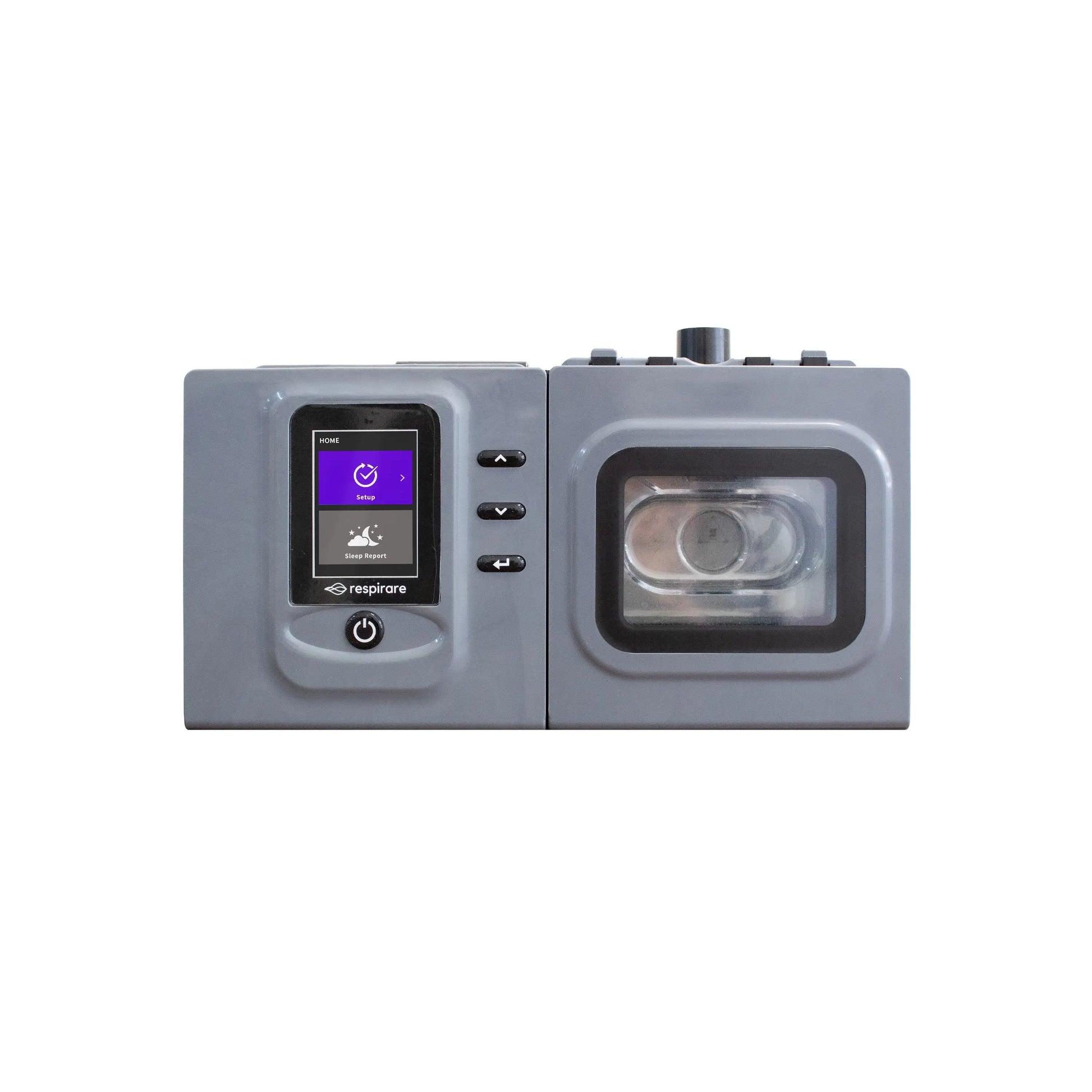

CPAP VT30 D

The Deck Mount VT30 D is an Auto CPAP machine featuring an advanced algorithm, heated humidifier, and best-in-class comfort features. Designed with user comfort in mind, it ensures affordability without compromising on quality.

Key features of DeckMount VT30 D Auto CPAP Machine:

• Advanced Auto CPAP Algorithm

The VT30 D Auto CPAP has an advanced Auto CPAP algorithm that continuously monitors your breathing patterns. It intelligently detects the level of obstruction and adjusts the pressure accordingly, ensuring optimal therapy, unlike many other CPAP devices that aggressively increase pressure, often leading to discomfort. While VT30 D ensures a more comfortable therapy experience.

• iMode (Auto on/off)

With this feature, the machine will automatically turn on once you put on the mask, without the need to press any button. Similarly, If the mask is removed, the machine will turn off automatically.

• Auto Ramp

The ramp feature helps users fall asleep more comfortably by starting therapy at a lower pressure, gradually increasing to the prescribed level. VT30 D comes with a ramp time setting ranging from 5 to 45 minutes and includes an Auto Ramp feature that eliminates the need for manual adjustments.

• A-Flex (Pressure Relief)

Since exhalation against high pressure can be challenging, this comfort feature ensures a smoother therapy experience by lowering the pressure when you breathe out, ensuring easier exhalation (available in Auto CPAP mode only).

• Heated Humidification

VT30 D Auto CPAP comes with a heated humidifier that makes the therapy more comfortable by adding moisture to the pressure and preventing dry nose and sore throat.

• Leakage Compensation

To ensure prescribed pressure is delivered to the patient, this feature compensates for any accidental leaks.

• CSA Detection

VT30 D Auto CPAP intelligently differentiates between Obstructive Sleep Apnea and Central Sleep Apnea. It can report if a user starts experiencing CSA events along with OSA which will help in further diagnosis.

• Warranty

The machine comes with 2 year warranty

SPECIFICATION

Therapy Modes: CPAP, Auto CPAP

Operating Range: 4-20 CmH2O

Sound Pressure Level: <28 dBA with uncertainty of 2 dBA

Leak Compensation: Auto

Peak Flow: 240 LPM

Ramp Time: Off, Auto, 5-45 mins

A-Flex (Expiratory Pressure Relief): On/ Off, 1-3 levels

Gender Selection: Male/ Female

Humidification Level: Off, 1-5 level (800 C max )

Alarms: Leak Alert

Data Management: 1/7/31 days, 6 months, 1 year of detailed data

Dimensions: 280x140x95 mm (Device with Humidifier)

Weight: 1700 g (Device with Humidifier)

Power Adapter: Input Range : 100-240V, 50/60 H2, 4A 90 Watt, Over voltage protection | Auto Controlled Temp variation

Display: 2.8 in LCD

Battery Backup: External (2-8 Hrs)

Operating Temperature / Humidity / Altitude: +5 oc to +35 oc/ 10-95% relative humidity, non-condensing/sea level to 2,591 m, air pressure range 735 hpa to 1013 hpa

Storage and Transport Temperature / Humidity: -20 oc to +60 oc / 5-95% relative humidity, non-condensing

Supplement Oxygen: Maximum Flow: 4L/min (CPAP)

Standard Air Filter: Pollen Filter (Washable)

Tubing: Standard (19 mm)

Air Outlet: 22 mm Air Outlet (STD)

Warranty: 2 Years

Conforms to Standards: IEC 60601-1-1 IEC 60601-1-2 IEC 80601-2-12 CDSCO::Class 2 (double insulated, Type BF, Ingress Protection IP22)
