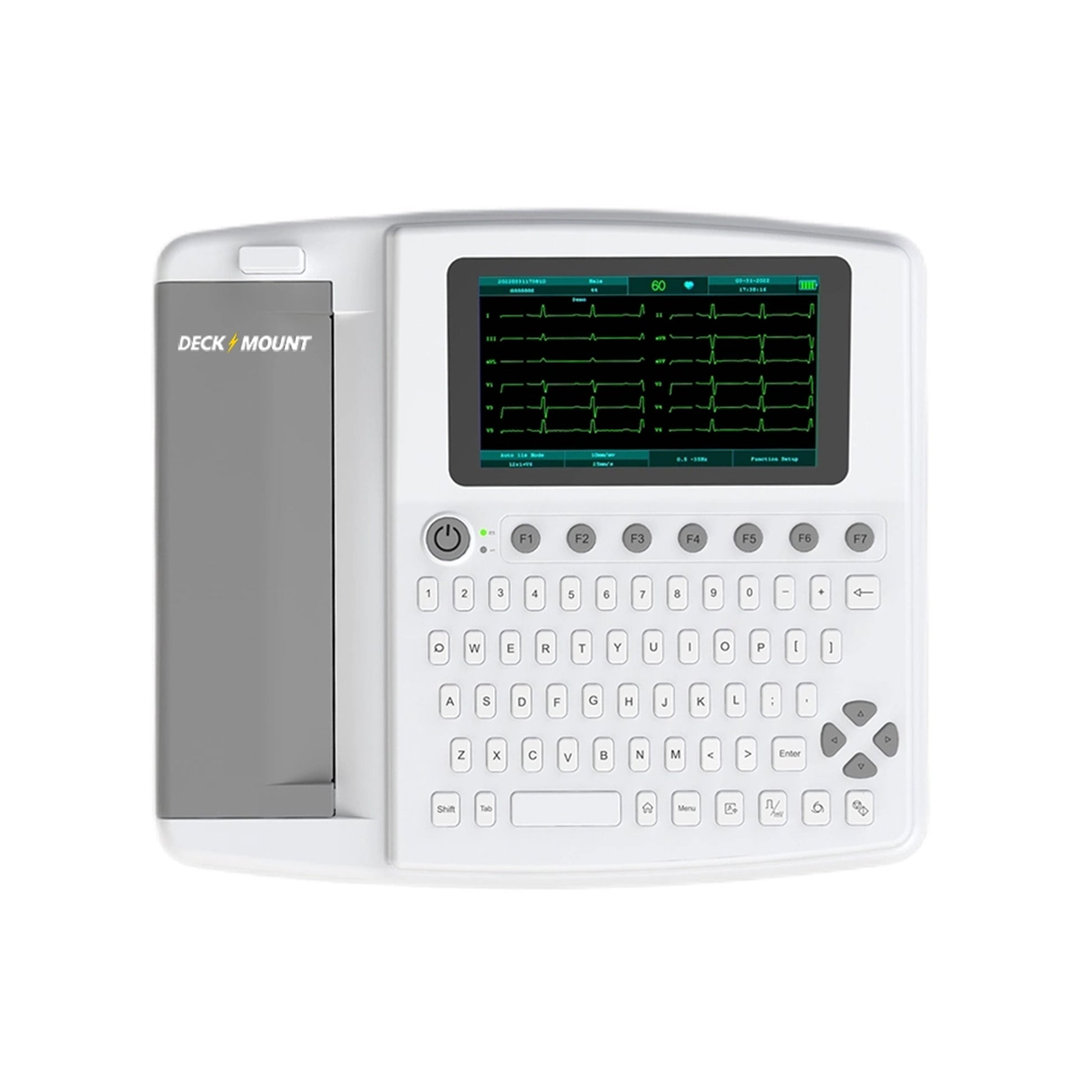

ECG 12 Leads

12 Channel 12 Lead ECG Machine: Automatic ECG measurements and interpretation, Built-in rechargeable lithium
high capacity battery.

SPECIFICATION

Auto Record: 25mm/s, 50mm/s, error ±5% [Record setup according to auto record format and mode, automatically changing leads, measuring and analyzing]

CMRR: 60dB, ≥100dB [Add Filter]

Description: 8″ LCD display with Touch screen

EMG Interference Filter: 35Hz [-3dB]

Frequency Response: 0.05 ~ 150Hz [-3dB ~ 0.4dB]

Input Impedance: ≥50MΩ

Input way: Floating and Defibrillation Protection

Lead: Standard 12 leads

Machine Net Weight: 2.25Kg

Manual Record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error ±5% [Record setup according to auto record format and mode, manual changing leads]

Measurement Parameters: HR, P-R interval P duration, QRS duration, T duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R[V5], S[V1], R[V5]+S[V1]

Noise Level: ≤15μVp-p

Paper Size: 210mm [W] x 20m [L] high speed thermal paper

Patient Leak Current: ≤ 10μA

Power Supply: AC 100 ~ 240V, 50/60Hz DC 14.8V, 3700mAh Rechargeable lithium battery

Printing Modes: 12*1, 6*2 + 1, 6*2, Rhythm row 12, row 10, row 8, row 6 etc with multiple formats

Product Safety Type: Class I CF applied part, there is defibrillation and pacing protection circuit in it

Recording: Auto, Manual and Rhythm

Recording Way: Thermal Printing System

Sensitivity Selection: 5, 10, 20, 40 mm/mV, [Error ±5%], Standard sensitivity is 10mm/mV ±0.2mm/mV

Time Constant: Time ≥3.2s

Ending Polarization Voltage: ±5OOmV

Commodity Name: 12 LEAD ECG MACHINE

Colour: White

Dimensions: 334mm[L] X 320mm[W] X 85mm[H]
