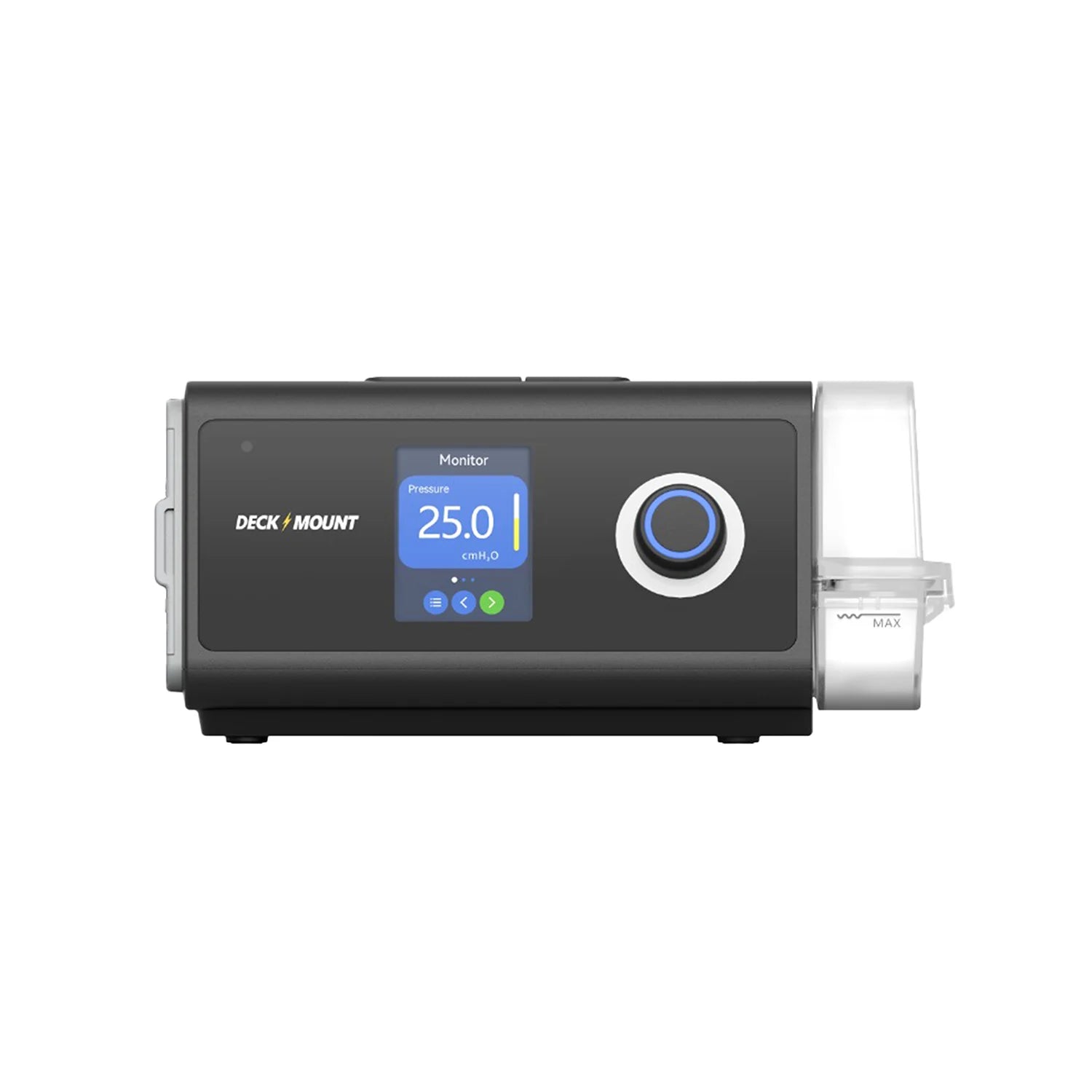

RESPIRARE VT 10D

The VT10 D CPAP machine combines advanced algorithm with ergonomic design to provide effective and comfortable therapy. Intelligent comfort features and precise pressure adjustments ensure better CPAP therapy.

Key Features of DeckMount VT10 D CPAP Machine

• Ergonomic Design

The DeckMount VT10 D CPAP machine is designed ergonomically to ensure better visibility and easy control access, providing a seamless user experience.

• Advanced CPAP Algorithm with CSA Detection

Equipped with an advanced Auto CPAP algorithm, the DeckMount VT10 D intelligently differentiates between Obstructive and Central Sleep Apnea, detecting severity and reporting CSA events for better diagnosis. It adjusts pressure precisely based on obstruction levels, ensuring optimal therapy without unnecessary discomfort.

• B-Flex (Pressure Relief)

The revolutionary B-Flex feature sets the VT10 D CPAP apart by delivering a more natural and comfortable breathing experience. In Auto CPAP mode, the B-Flex system intelligently adapts to your breathing pattern by reducing pressure during exhalation to minimize discomfort. This ensures a smoother and more comfortable CPAP therapy.

• Auto On/Off

Say goodbye to fumbling with buttons and switches. The DeckMount VT10 D CPAP features an intuitive Auto On/Off system that automatically activates the machine when you put on your mask and automatically shuts down when you remove the mask.

• iRamp

The VT10 D allows the ramp time to be set between 0 to 60 minutes, ensuring a gradual pressure increase for enhanced comfort. Ramp time is crucial as it helps users ease into therapy by starting at a lower pressure, making it easier to fall asleep without discomfort.

Additionally, the iRamp (Auto Ramp) feature intelligently detects breathing patterns and automatically adjusts the ramp time, ensuring a seamless transition to the prescribed pressure.

• Auto Leakage Compensation

The machine automatically compensates for any accidental leakages from the mask or tube without compromising the prescribed pressure delivery.

• Alarms

Safety and awareness are paramount with the DeckMount VT 10 CPAP, which features an advanced dual-alert system with sound and graphic alarms. Designed to exceed national safety standards, it provides timely and clear notifications about the device's status, ensuring user safety through immediate and informative alerts.

• Integrated Humidifier

Experience the perfect balance of comfort and health with the integrated humidification system. Designed to deliver consistent, controlled moisture throughout therapy, it helps prevent dry nose and throat irritation. With adjustable humidity levels, you can personalize your comfort for a more soothing and effective treatment.

• Heated Tube Compatibility

VT10 D CPAP is compatible with an optional heated tube that enhances the comfort of CPAP therapy and prevents the accumulation of water droplets inside the tube due to condensation.

• Supplemental Oxygen Support

The VT10 D CPAP machine is compatible with supplemental oxygen support, allowing a maximum flow of 4L/min, ensuring effective therapy for users who require additional oxygen.

• Warranty

VT10 D CPAP machine comes with a 2-year warranty.

SPECIFICATIONS

Auto On,Off/ SD card: On / Off

B-FLEX: 0-3 levels

Boost Sensitivity: Standard | Sensitivity | Soft

Preheat/ Preheat time: On/ Off / 10-30 mins

Therapy Modes: CPAP, APAP, iAPAP

Operating Range: 4-20 CmH2O

Sound Pressure Level: <30 dBA with uncertainty of 2 dBA

Leak Compensation: Auto

Ramp Time: 0-60 mins/ On/ Off

Humidification Level: 0-5 level

Alarms: High Leakage Apnea

Data Management: 1/7/31 days, 6 months, 1 year of detailed data

Dimensions: 250x181x114 mm/ 1340 g

Power Adapter: Input Range : 100-240V, 50/60 Hz, 1.8 A max (typical power consumption)

Display: 2.8 in LCD

Operating Temperature / Humidity / Altitude: +5 oc to +35 oc/ 10-95% relative humidity, non-condensing/sea level to 2,591 m, air pressure range 700 to 1060 hpA

Storage and Transport Temperature / Humidity: -20 oc to +60 oc / 5-95% relative humidity, non-condensing

Supplement Oxygen: Maximum Flow: 4L/min (CPAP)

Standard Air Filter: Cotton Filter

Air Outlet: Standard (19 mm)/ 22 mm Air Outlet (STD)/ Heating tube (Optional)

Warranty: 2 Years (Repair)

Conforms to Standards: IEC 60601-1-1 IEC 60601-1-2 IEC 80601-2-12 CDSCO | Class 2 (double insulated, Type BF, Ingress Protection IP22)
