RESPIRARE VT 70D

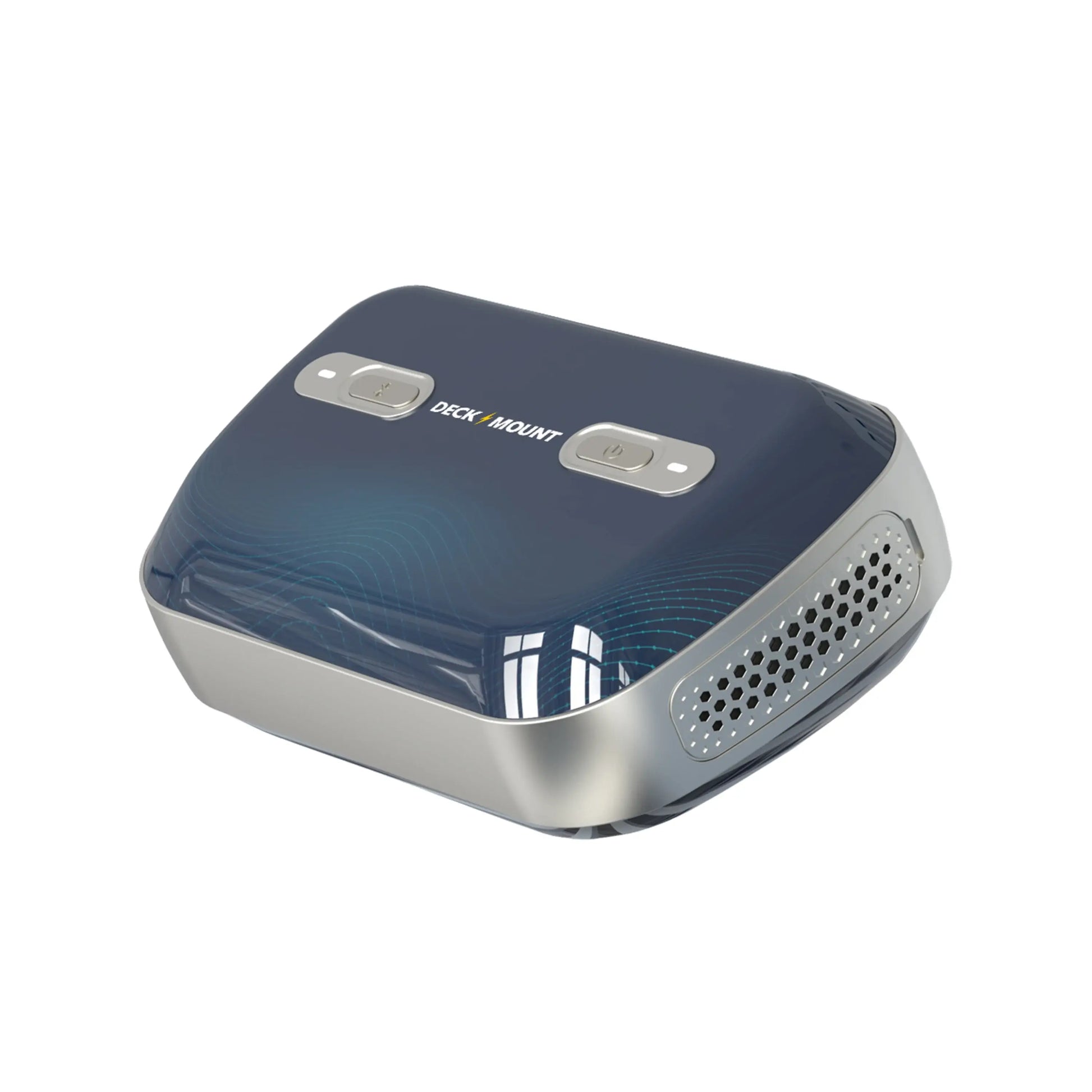

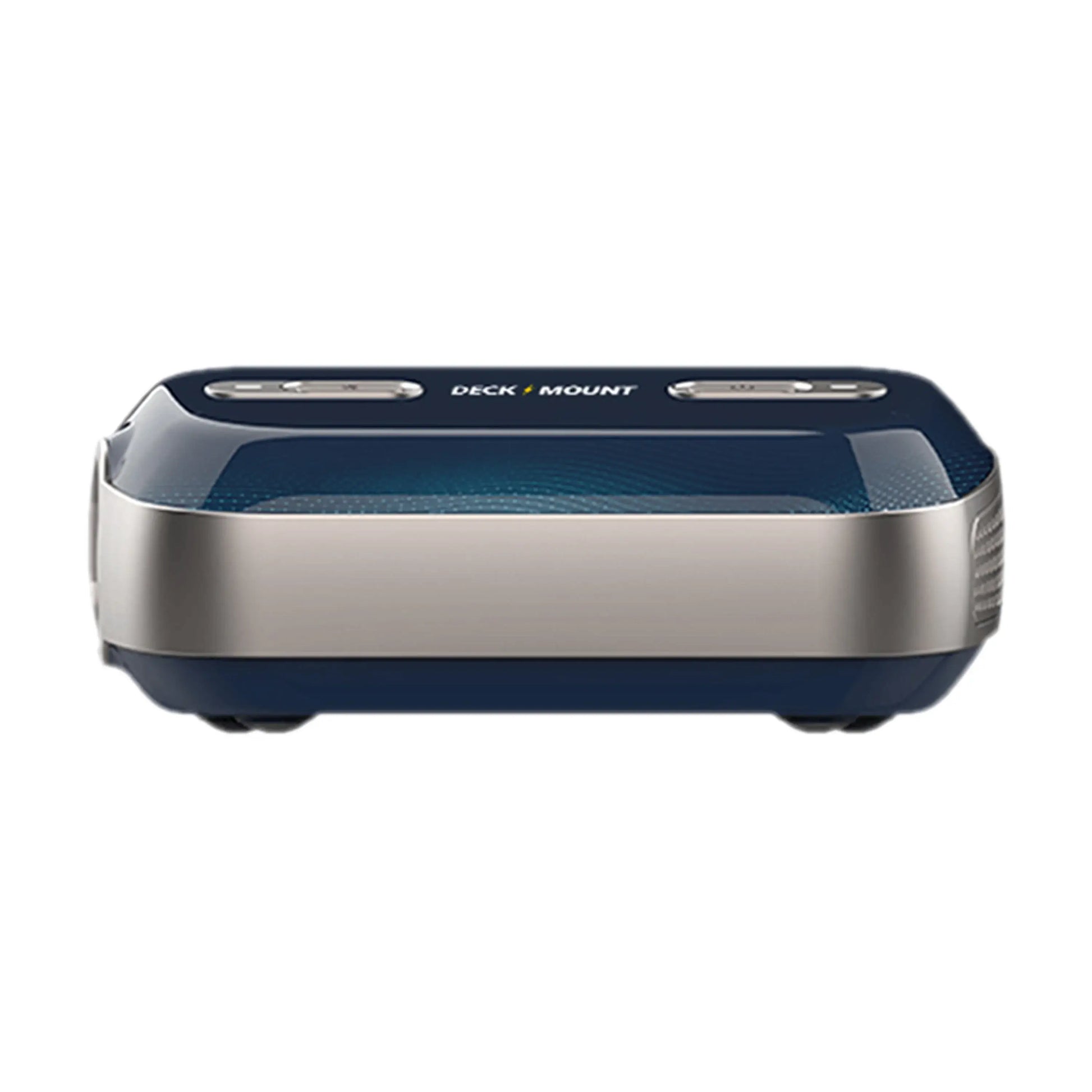

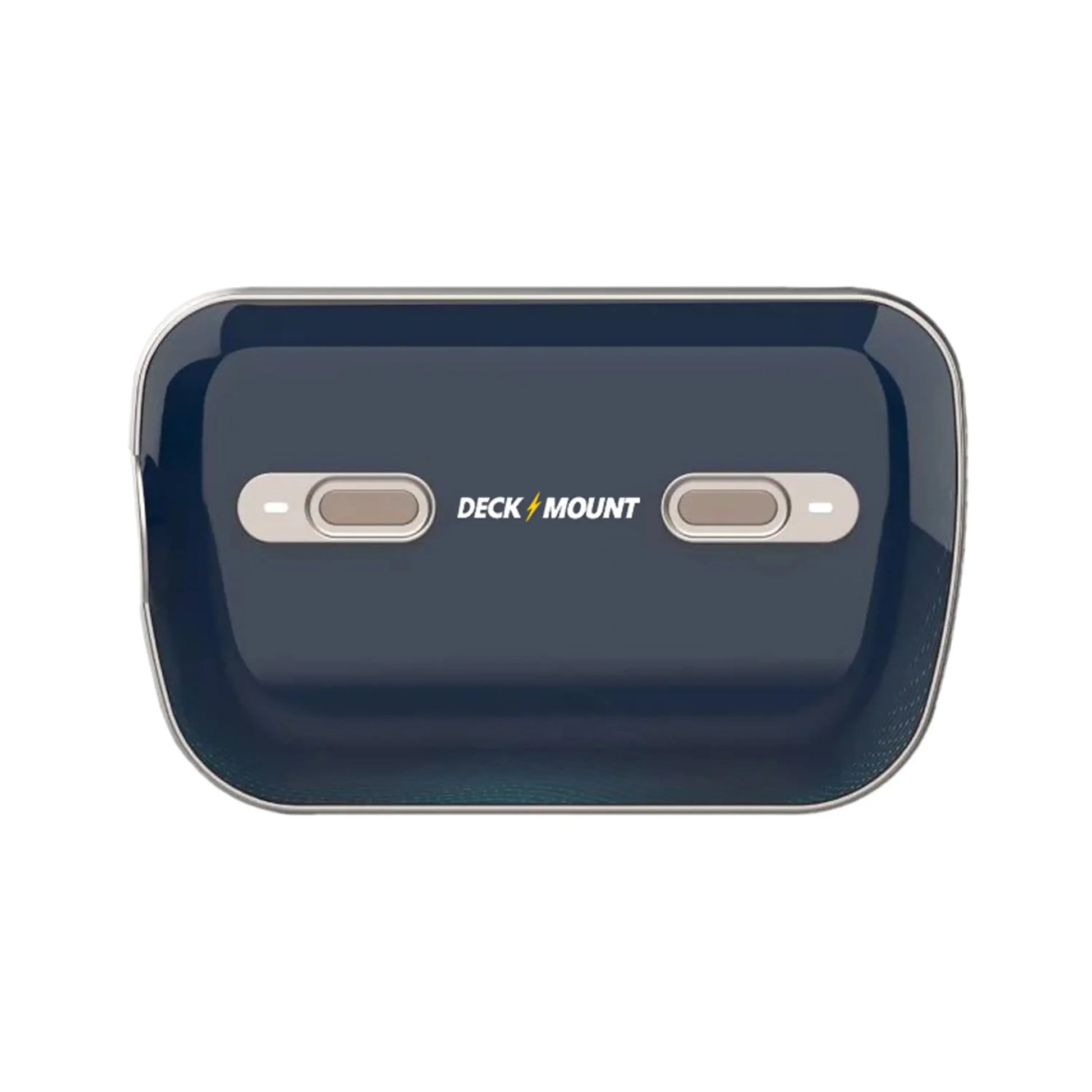

DeckMount VT70 D Mini CPAP is a compact and lightweight machine designed for patients who need better sleep anywhere they travel. What makes the Respirare VT70 D unique is its advanced sensors which are rigorously tested to detect even the slightest modifications in your respiratory patterns.

Key Features of DeckMount VT70 D Travel Mini CPAP Machine

• Portability

Weighing just 317 grams, the VT70D is designed for hassle-free travel. Its compact size (90mm x 143mm) ensures easy portability, making it the perfect companion for frequent travelers and those who need CPAP therapy while traveling.

• HEM Technology

The VT70 D travel mini CPAP uses HEM Technology for humidification. It works by trapping the heat and moisture from your exhaled breath and makes the inhaled air more moist. Even with its small size, the VT70D provides the comfort of humidification, ensuring smooth therapy while traveling.

• A-Flex

The machine is equipped with an A-Flex Pressure relief feature that reduces pressure during exhalation, making breathing out easier and more comfortable.

• Auto On/Off

With Auto On/Off, the machine starts automatically when you put on the mask, without the need to press any button. Similarly, it shuts down when the mask is removed.

• iRAMP

Ramp time ensures a smooth transition into sleep by starting therapy at a lower pressure and gradually increasing it. The machine features iRamp, which automatically adjusts the ramp time by analyzing breathing patterns, eliminating the need for manual adjustments.

• Real-Time Data Tracking

The machine is compatible with the Respirare VT70 D app which provides real-time data tracking for the detailed analysis of the ongoing CPAP therapy.

• Leakage Compensation

The VT70D is equipped with leakage compensation, which adjusts for any leaks from the mask or tube to maintain a consistent prescribed pressure.

• Warranty

The machine comes with a 2-year warranty.

SPECIFICATION

Mode- Non-Invasive Mode: CPAP, Auto CPAP

Sound Level: 37 dBA

AC Input Range: 220V 50 Hz

Power Supply Weight: 45 lbs (7.2 oz)

Operating Range: 4-20 cm H2O

Power Consumption: 10W

Pressure Range: 4-20 cm H2O

Sound Pressure Level: 30 dBA

Dimensions: 14.3 cm X 9.0 cm X 5.4 cm

Weight: 317 Gms

Operating Temperature / Humidity / Altitude: +41F to +95F (+5C to +35C) / 10 to 93% relative Humidity, non-condensing / Sea level to 8,500 ft

Storage and Transport Temperature / Humidity: -13F to +158F (-25C to +70C) / 5 to 95% relative humidity, non condensing

Warranty: 2 Years

Conforms to Standards: IEC 60601-1-1, IEC 60601-1-2, IEC 80601-2-12, Class 2 ( Double Insulated, Type BF, Ingress Protection IP22 )
